Change Transmission/Hydraulic Oil

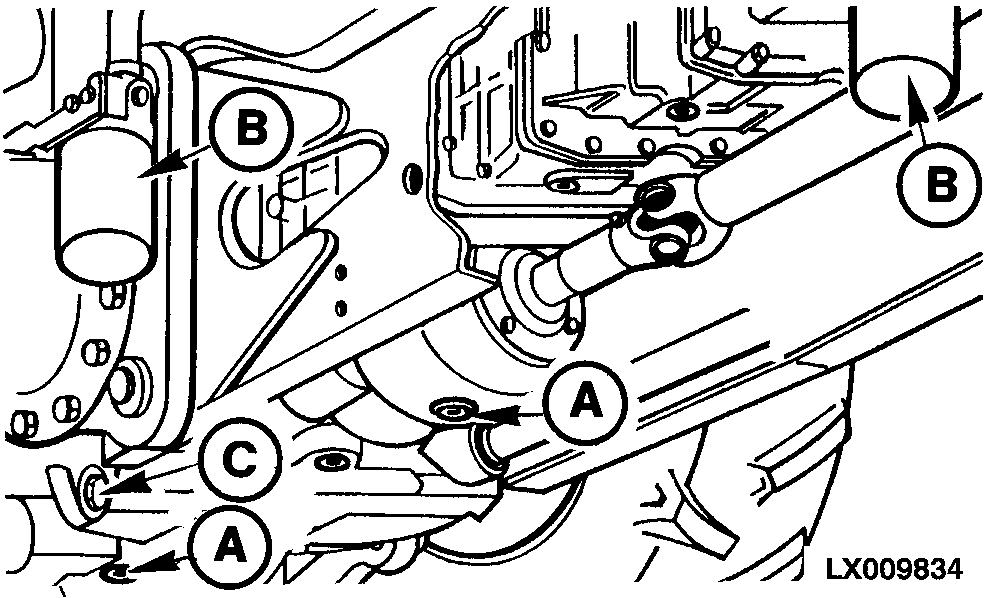

LX009834-UN-03JAN95

A - Drain screws

B - Transmission/hydraulic oil filters

C - Plug

1. Start engine and operate several hydraulic functions to heat up oil.

2. Park tractor so that it is level. Lower draft links and front-mounted implements.

3. Shut off engine and remove the key.

4. Engage the park lock.

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter elements (B).

7. Remove plug (C), pull out intake screen and wash in fuel. Clean the area where the intake screen is installed. Re-install the intake screen.

8. Before refilling with fresh oil, replace seals and tighten drain screws to 50 Nm (35 lb-ft).

9. Add transmission/hydraulic oil to the transmission case.

Run engine briefly and operate hydraulic functions. Shut off the engine.

Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the sight-glass. If not, correct oil level.
