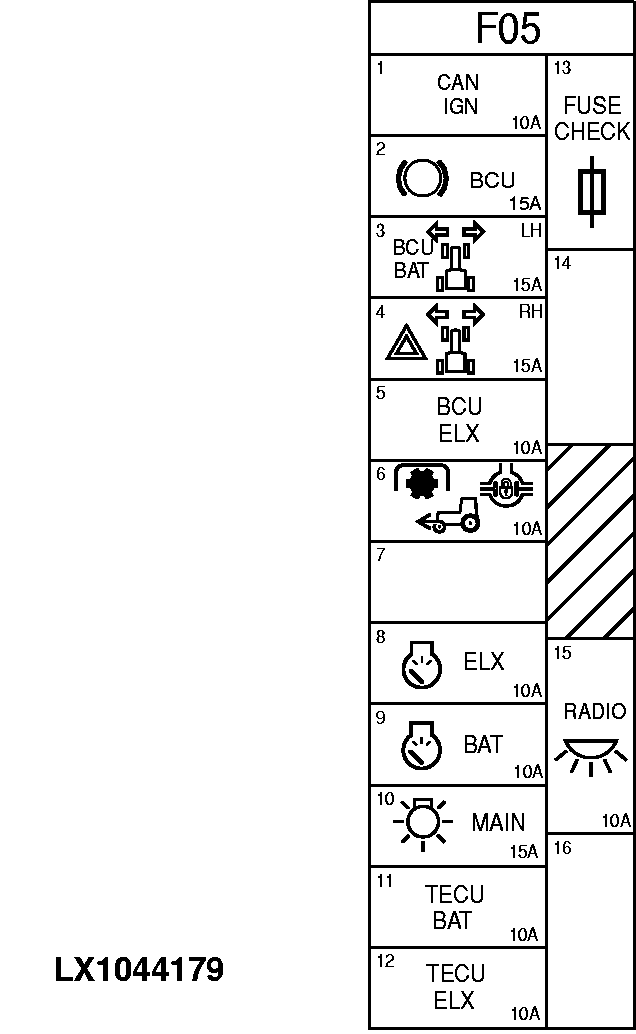

Fuses F05 (with Cab)

LX1044179-UN-08NOV07

Number	Capacity (amps)	Consumer
F05/01	10 A	CAN BUS
F05/02	15 A	Brake switch, brake light
F05/03	15 A	Left turn signal, BCU control unit
F05/04	15 A	Right turn signal, hazard warning lights
F05/05	10 A	BCU control unit
F05/06	10 A	BCU control unit (rear PTO, front PTO, front-wheel drive, differential lock)
F05/07	-	Not used
F05/08	10 A	Instrument unit
F05/09	10 A	Instrument unit
F05/10	15 A	Light switch
F05/11	-	Not used
F05/12	-	Not used
F05/13	-	Fuse tester
F05/14	-	Not used
F05/15	10 A	Console light, instrument unit light, radio light
F05/16	-	Not used
