Wiper and Washer System

LX1043849-UN-17SEP07

LX1043850-UN-23AUG07

LX1042972-UN-03JUL07

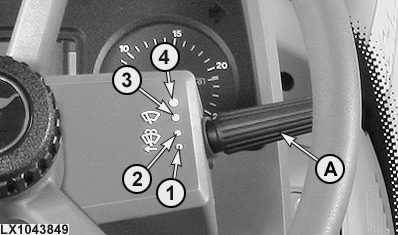

A - Windshield wiper switch

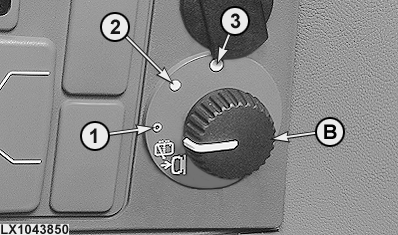

B - Rear window wiper switch

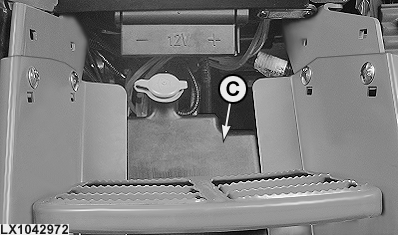

C - Windshield washer reservoir

Windshield wiper switch (A) has three positions:

• 1 = off
• 2 = Slow wipe
• 3 = Fast wipe
• 4 = not used

The windshield washer system is operated using switch (A) (push towards steering column).

Rear window wiper switch (B) has three positions:

• 1 = off
• 2 = Slow wipe
• 3 = Fast wipe

The window washer system is operated using switch (B) (push the switch).

Add a suitable anti-freeze solution to water in reservoir (C) to prevent damage to the system if temperatures drop below freezing point.
