Air Comfort Seat

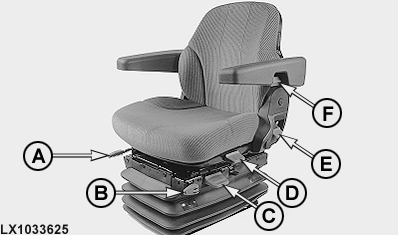

LX1033625-UN-19APR04

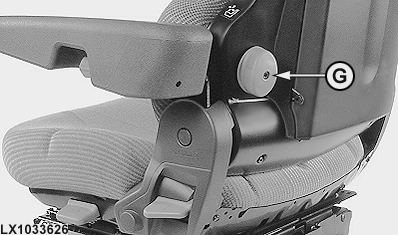

LX1033626-UN-19APR04

A - Fore-and-aft adjustment

B - Lever for fore/aft suspension

C - Height adjustment

D - Lever for swivel movement

E - Backrest tilt

F - Armrest tilt adjustment

G - Lumbar support adjustment

1. Adjust weight

   There must be weight on the seat for it to be adjusted to suit the weight of the operator. Start the engine, allow the seat to settle, then pull lever (C) up briefly. The seat adjusts itself automatically to the weight of the operator.

2. Adjust height

   After the weight adjustment has been made, the seat can be adjusted to any height. To adjust the height, pull lever (C) upward as high as it will go or push it down. If the top or bottom limit is reached during height adjustment, automatic height adjustment takes place to ensure a minimum amount of travel up and down (suspension).

3. Adjust fore/aft spring

   • Lever (B) to the front - No fore/aft suspension
   • Lever (B) to the rear - Fore/aft suspension



Adjust swivel

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

The seat swivel is operated by means of lever (D) as follows:

Lifting the lever up allows the seat to turn 15° to the left and right. The seat can be locked at 7.5° intervals.

Adjust the armrests

To lower the armrest through 30°, press the armrest tilt adjuster (F) into the armrest.
