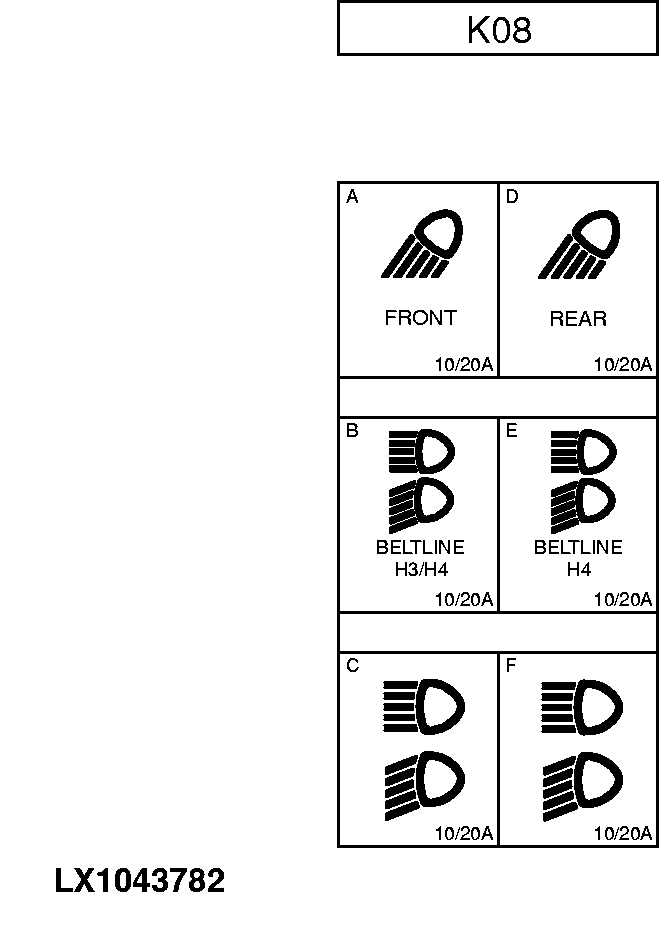

Relays K08 (with Cab)

LX1043782-UN-20JUL07

Number	Capacity (amps)	Designation
K08/A	10/20 amps	Relay for worklights on front of roof
K08/B	10/20 amps	Relay for worklights and headlights on cab frame
K08/C	10/20 amps	Relay for low-beam headlights
K08/D	10/20 amps	Relay for worklights on rear of roof
K08/E	10/20 amps	Relay for headlights on cab frame
K08/F	10/20 amps	Relay for full-beam headlights
