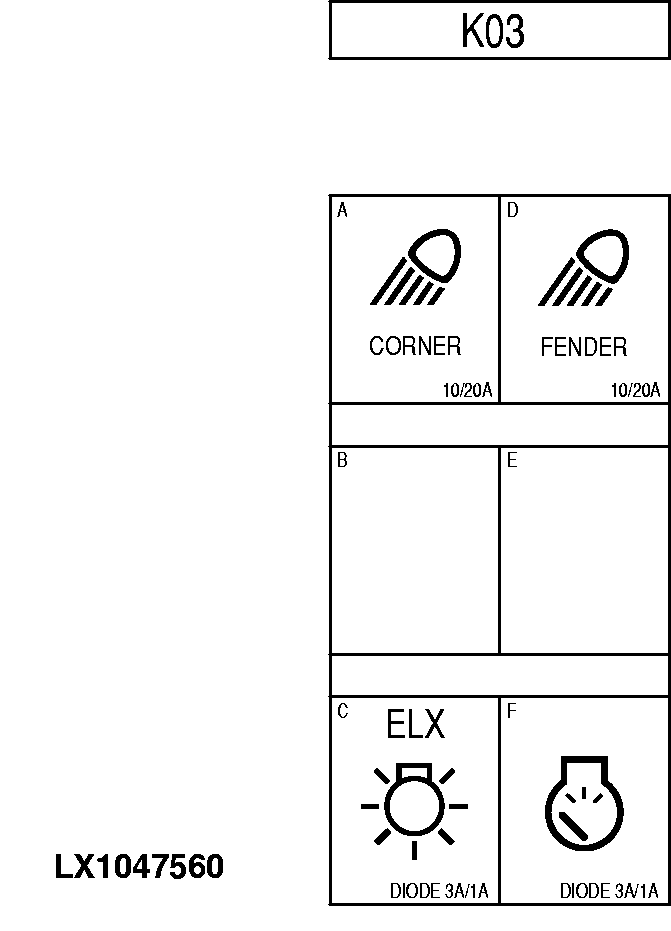

Relays/Diodes K03 (with Cab)

LX1047560-UN-30JAN09

Number	Capacity (amps)	Designation
K03/A	10/20 A	Relay for front corner worklights
K03/B	-	Not used
K03/C	1A	Diode for power supply to electronics
K03/C	3 A	Diode for lights
K03/D	10/20 A	Relay for worklights on rear fenders
K03/E	-	Not used
K03/F	1 A	Not used
K03/F	3 A	Diode for instrument unit
