Electrical Sockets (If Equipped)

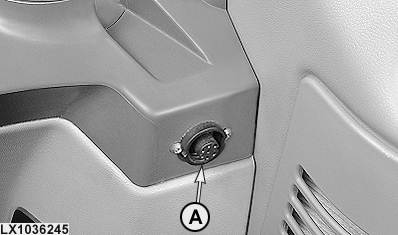

LX1036245-UN-03JUN05

Signal socket in lateral console

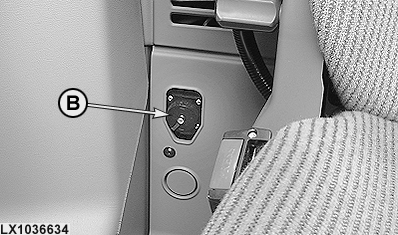

LX1036634-UN-24AUG05

3-terminal socket in rear cab wall

A - Signal Socket

B - 3-Terminal Power Outlet Socket

Signal socket

Terminal	Wire color	Description
1	Red	Speed determined by radar
2	Brown	Wheel speed
3	Orange	Rear PTO speed
4	—	—
5	—	—
6	Blue	Power supply
7	Black	Ground

The 7-terminal signal socket (A) is protected by a 30-amp fuse.

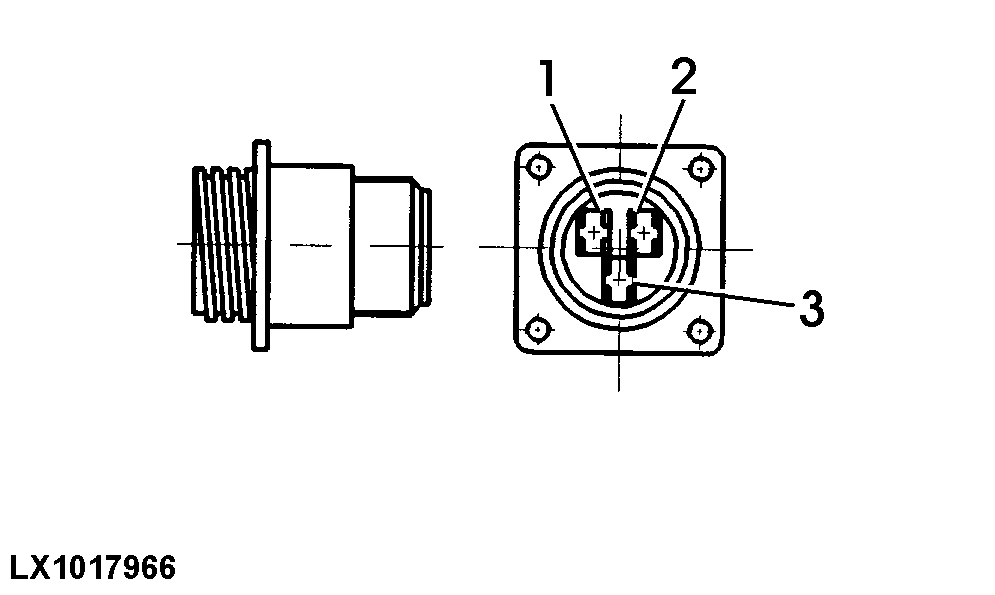

3-terminal power outlet socket

LX1017966-UN-12JAN98

Turn key in main (key) switch to the right to supply power to terminal 1. Terminal 2 is supplied with power even when the ignition is switched off.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, and the use of multiple power outlets is permitted, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.

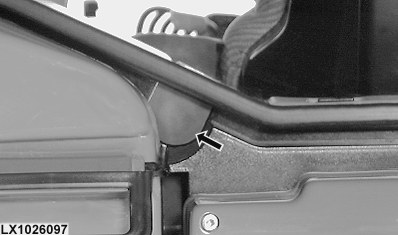

Routing the cables

LX1026097-UN-09MAR01

The rear window of the cab is provided with two openings, allowing the cables to be routed. Open the window and take out the rubber stoppers. Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the connectors, insert the rubber stoppers and close the window.
