Starting with a Booster Battery

LX000399-UN-26JUL94

CAUTION: Gas given off by batteries is highly explosive. Keep sparks and naked flames away from batteries. Be sure polarity is correct before making connections: ground cable to negative pole and starter cable to positive pole of battery.

Reversed polarity will damage the electrical system. Always connect positive cable first and then negative cable!

Tractors with Cab

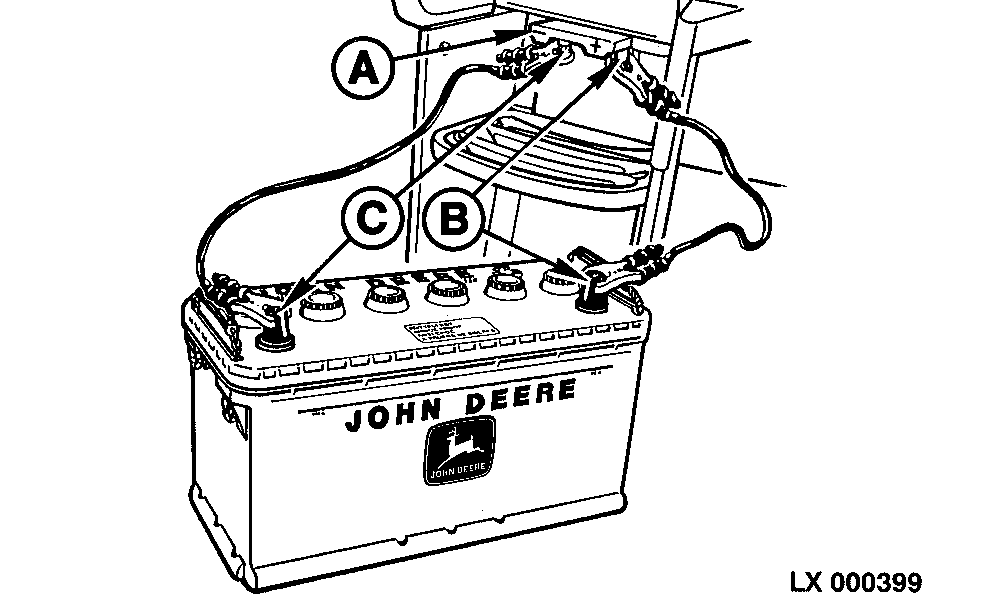

The tractor is equipped with connections to allow an additional 12-volt battery to be brought into the circuit. Lift up cover (A), and connect positive poles (B) before connecting negative poles (C).

Tractors without Cab

Remove battery and install a replacement battery. See Section 85.
