Float position

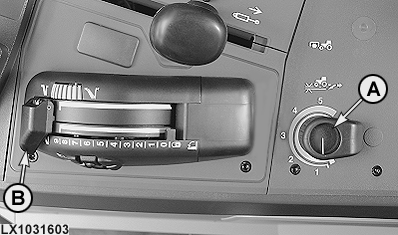

LX1031603-UN-28OCT04

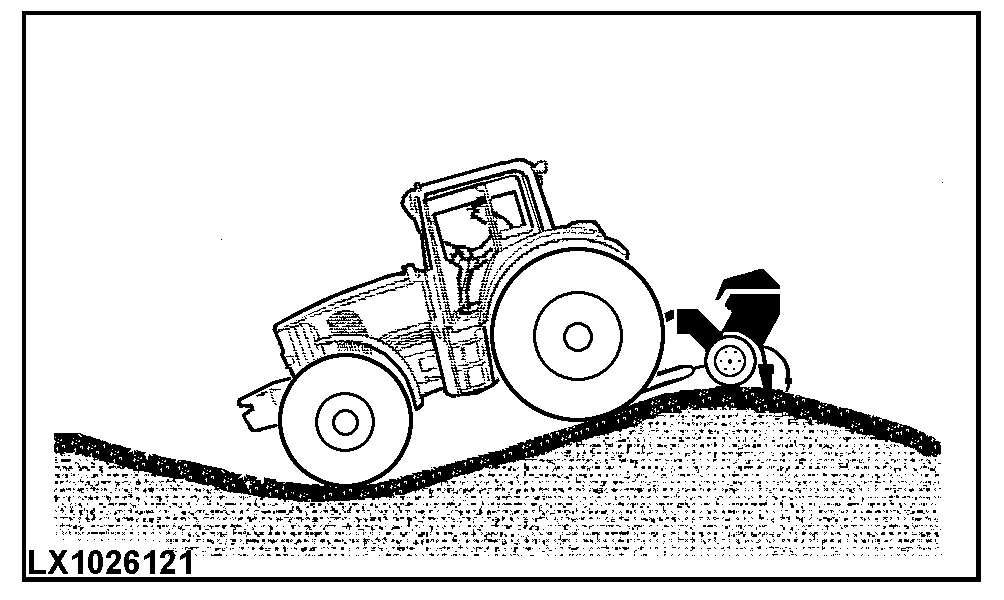

LX1026121-UN-10MAY01

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. For this position, set load/depth control (A) to ”1” and move hitch control lever (B) as far as it will go to the front.
