Adjust Steering Wheel

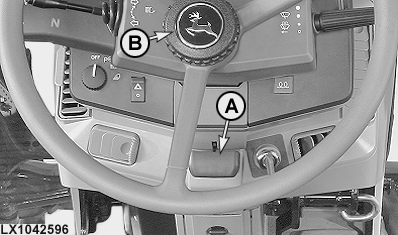

LX1042596-UN-03JUL07

To adjust steering wheel, pull lever (A) upward, move steering wheel to desired angle and release the lever.

If only the lever is pulled, the steering wheel will rise to its highest position.

To adjust steering wheel height, loosen ring (B). Retighten the ring once the adjustment is completed.
