Adjust Rate of Implement Drop

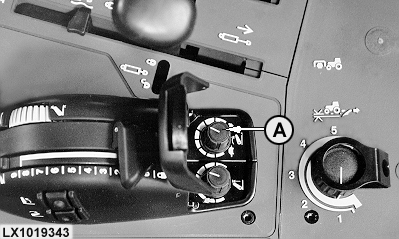

LX1019343-UN-07APR98

The rate at which the hitch and mounted implement will drop is controlled by turning control (A).

The rate-of-drop varies with the setting of control (A) and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop and the lighter the implement, the slower the rate-of-drop.
