Depth Adjustment

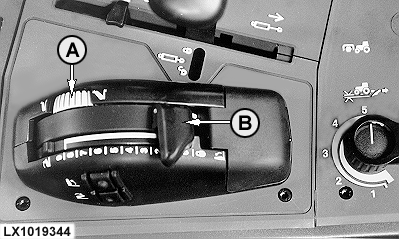

LX1019344-UN-07APR98

Push down hitch control stop (A) and set the desired working depth.

After lifting the implement, the same working depth will be selected the next time the implement is lowered. This depth is indicated by resistance at hitch control lever (B).
