Attach Three-Point Hitch Mounted and Drawn Implements

LX1043864-UN-23AUG07

LX1019346-UN-07APR98

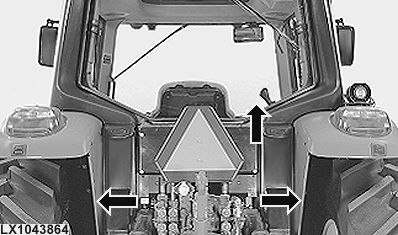

Be sure not to damage exposed parts of cab (see arrows) when attaching three-point hitch mounted or drawn implements.

CAUTION: Do not stand between tractor and implement unless park lock and park brake are both applied firmly.

IMPORTANT: When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

If a swinging drawbar is installed, set it in the front, short position. The swinging drawbar can also be swung to the right or left and secured there.

When attaching an implement, first make sure that the load/depth control is set to 1 (depth control).
