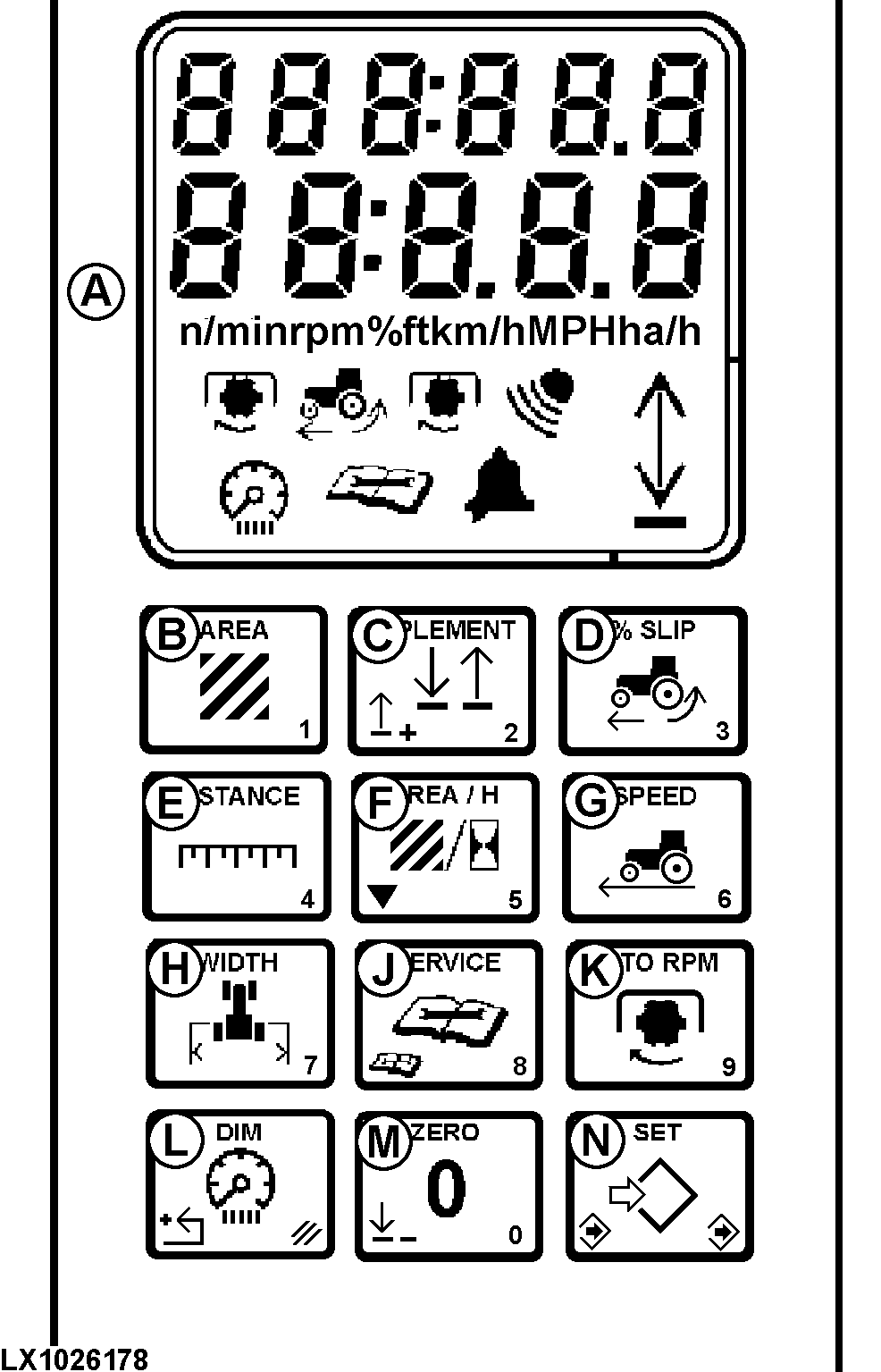

Performance Monitor

LX1026178-UN-29JAN02

A - Display field

B - Area

C - Implement

D - % slip

E - Distance

F - Area/H

G - Speed

H - Width

J - Service

K - PTO rpm

L - Backlight/cancel

M - Zero

N - Set/save

NOTE: Ignition switch must be in the “ON” position to operate performance monitor.

Performance monitor displays information related to various speeds, area, distance, time and alarm data.

Area, wheel slip, slip alarm, width, implement indicator, distance, backlight brightness and service can be adjusted or preset.

A radar sensor is required for an accurate calculation of wheel slip, area covered, distance or speed. Without a radar sensor, values are estimates based on wheel speed.
