Wheel Slip (3)

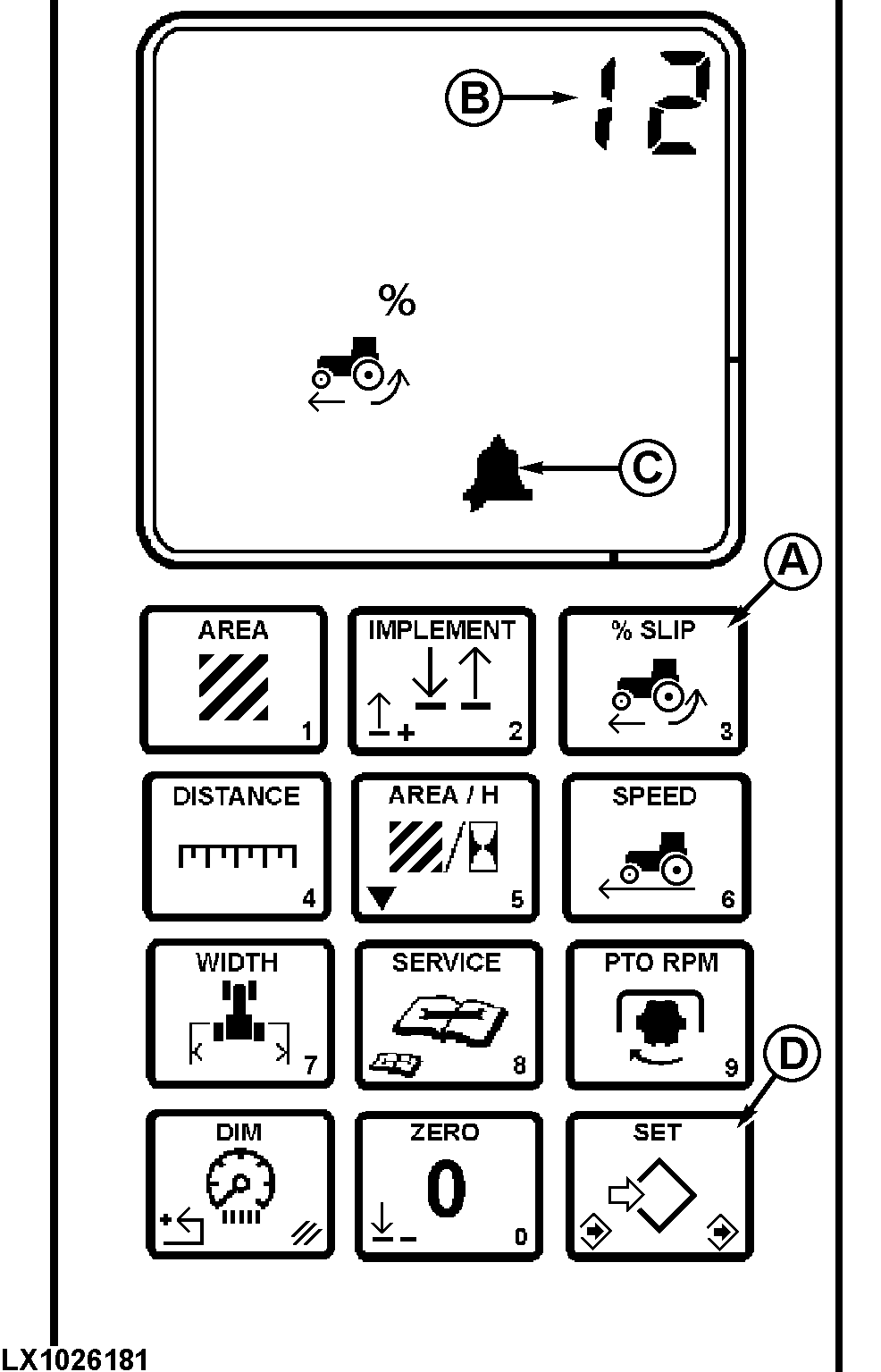

LX1026181-UN-29JAN02

A - % slip switch

B - Numerical display

C - Wheel slip alarm

D - Set/save switch

Radar must be operational to provide true ground speed. If true ground speed is not available, “---” will be displayed.

Press % SLIP switch (A). The numerical display will show current wheel slip.

Press switch again to display the wheel slip alarm setting. An alarm symbol will be displayed.

NOTE: The illustration shows that the alarm is currently set at 12% (B). The alarm symbol (C) indicates that the alarm mode is set.

Press (D) to change alarm value.

Input alarm setting using touch pad, then press (D).

NOTE: Entering “0” as an alarm value will shut off alarm.
