Levers for Selective Control Valves

Control lever positions

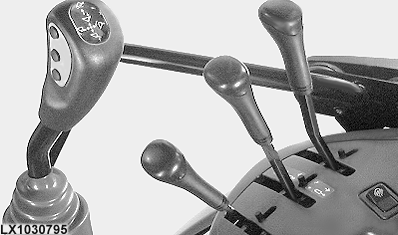

LX1030795-UN-29JAN03

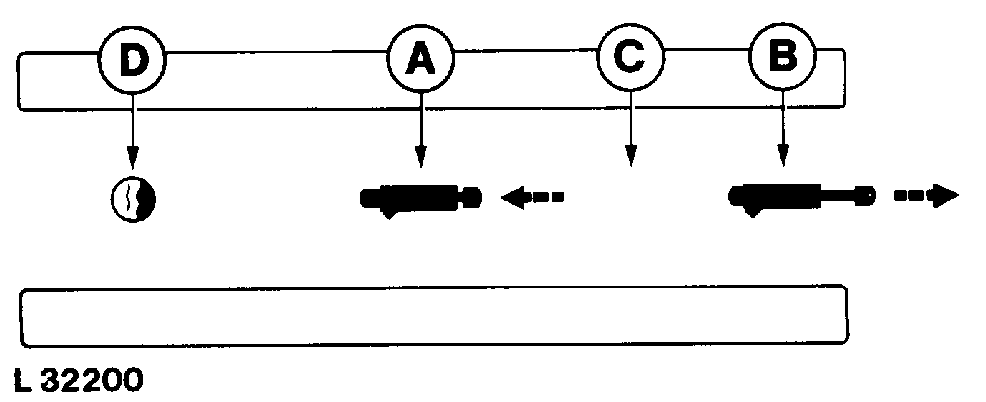

L32200-UN-13APR00

The control lever has four positions.

(A) - Retract

The remote cylinder retracts when the lever is moved to the Retract position.

(B) - Extend

The remote cylinder extends when the lever is moved to the Extend position.

(C) - Neutral

The remote cylinder is held in place when the lever is in Neutral.

(D) - Float

The mounted implement follows the ground contours when the lever is in Float position (piston moves freely inside remote cylinder).

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

Transport lock

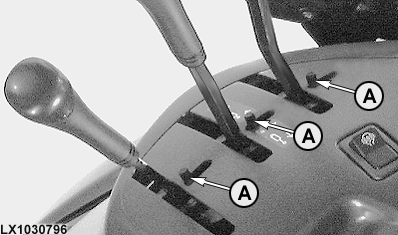

LX1030796-UN-29JAN03

CAUTION: Use locks (A) to lock the control levers when driving on roads and whenever the control levers are in neutral because they are not required. If this is not done, the control levers may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.
