Change Oil In Front-Wheel Drive Axle Housing

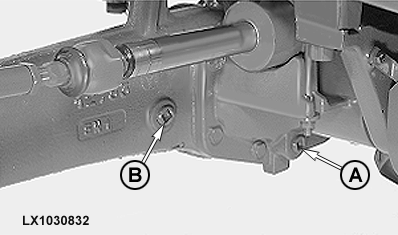

LX1030832
LX1030832-UN-30JAN03

  1. Remove drain screw (A) and drain oil into a suitable container.

  2. Re-install drain screw and tighten to 70 Nm (52 lb.-ft.).

  3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to lip of filler neck. Re-install oil level/filler plug and tighten to 70 Nm (52 lb.-ft.).

Recommended oil

Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).

Capacity

4.5 L (1.2 U.S.gal.)

Hy-Gard is a trademark of Deere & Company

OU12401,0000C7D-19-20100506
