Change Oil in Front-Wheel Drive Final Drives

LX1030833-UN-30JAN03

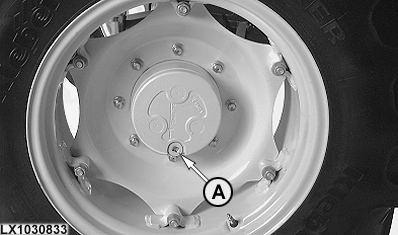

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain the oil into a suitable container.

2. Turn the wheel through 90° so that the OIL LEVEL mark is horizontal (see Service - Every 250 Hours). Add oil at the hole for the drain screw until the oil comes up to the lip of the hole.

3. Re-install drain screw and tighten to 60 Nm (44 lb.-ft.).

Recommended oil	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	0.7 L (0.2 U.S.gal.)
