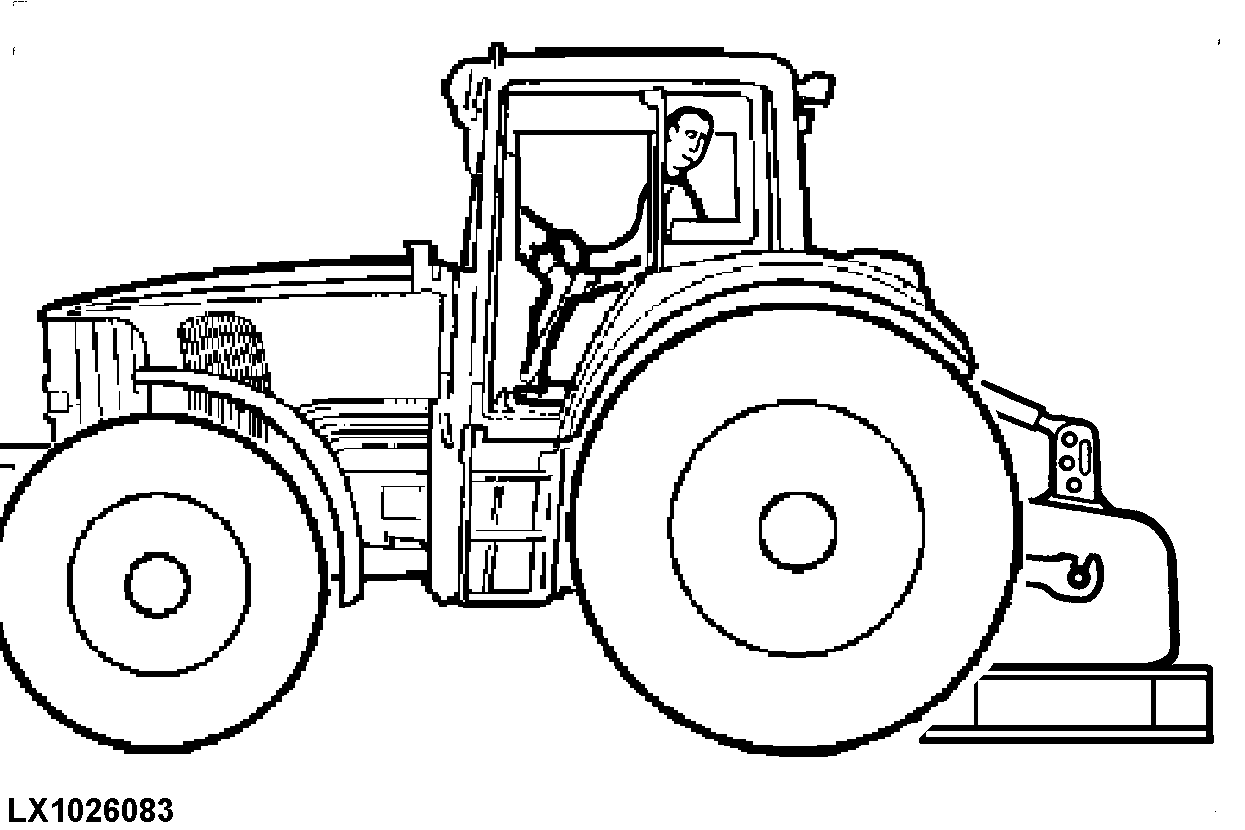

Attaching the Pick-Up Weight

LX1026083-UN-18MAY01

Remove the adjusting rod and eye-bolts.

Put the swinging drawbar to its shortest position and swing it to the side.

Remove the height-adjustable trailer hitch (hitch only).

Install the center link bracket on the pick-up weight.

Reverse the tractor to the pick-up weight and proceed as for any other implement.

NOTE: On tractors with extra-large tires, it may be necessary to adjust the lift links to their maximum length.

CAUTION: Make sure that the hooks on the draft links are closed properly.

CAUTION: Install all retaining pins.

CAUTION: Steering may be adversely affected unless there is sufficient weight at the front end of the tractor (e.g. a front loader).

IMPORTANT: Remember to engage the center link.
