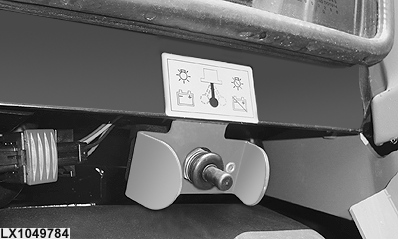

Battery Cut-Off Switch (If Equipped)

LX1049784-UN-08SEP10

This switch allows the battery to be cut off from the tractor's electrical system. To do this, main switch must be in OFF-position.

CAUTION: Never switch off the power at the battery cut-off switch while the engine is running! This may damage the electronic system of the tractor. In addition, the voltage peaks that will occur at the alternator may be dangerous.

IMPORTANT: During a long storage period always turn battery cut-off switch to the OFF-position (tractor electrical system disconnected from battery power supply). Battery will be discharged if the tractor is not used and the battery cut-off switch is in the ON-position
