Clean the Cab Air Filter

LX1033518
LX1033518-UN-19NOV03

LX1033519
LX1033519-UN-19NOV03

Every time the engine air cleaner is serviced, also clean or replace all the cab air filters.

IMPORTANT: If the tractor is equipped with activated carbon filters, these must NOT be cleaned. Instead, activated carbon filters must be replaced with new filters.

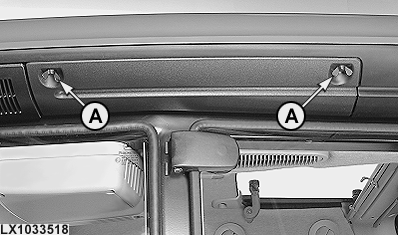

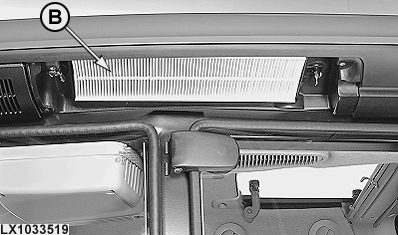

Take out screws (A) and remove the cover. Remove installation frame and filter (B).

With the nozzle on the clean side, use compressed air to blow the dust out of the filter elements.


Recirculating filter (tractors with air-conditioning system)

LX1033520
LX1033520-UN-19NOV03

LX1033521
LX1033521-UN-19NOV03

LX1033522
LX1033522-UN-19NOV03

On tractors with air conditioning system also clean the two recirculating air filters (one of each on either side of the cab).

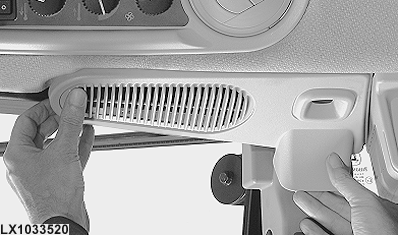

Pull cover on outer side down and remove.

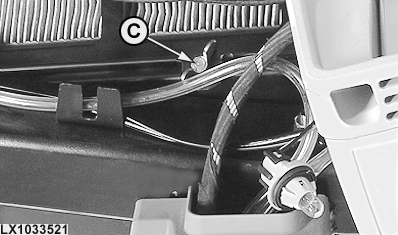

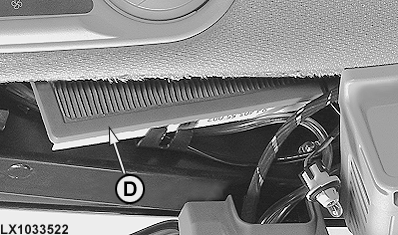

Loosen attaching screws (C) and remove bracket. Remove filter (D).

With the nozzle on the clean side, use compressed air to blow the dust out of the filter elements.

OU12401,0001005-19-20100730
