Multi-Function Lever (Mechanical)

LX1036592-UN-28JUL05

LX1054600-UN-10OCT11

A - Multi-Function Lever

B - Buttons for Additional Functions

C - Transport Lock Slide Control

D - Gear Shift Buttons

Multi-function lever (A) permits two SCVs to be operated at the same time. Buttons (B) allow additional functions to be performed.

If upshift/downshift buttons (D) are equipped, they allow the gears at the transmission to be shifted. The slide control (C) can be used to lock the lever.

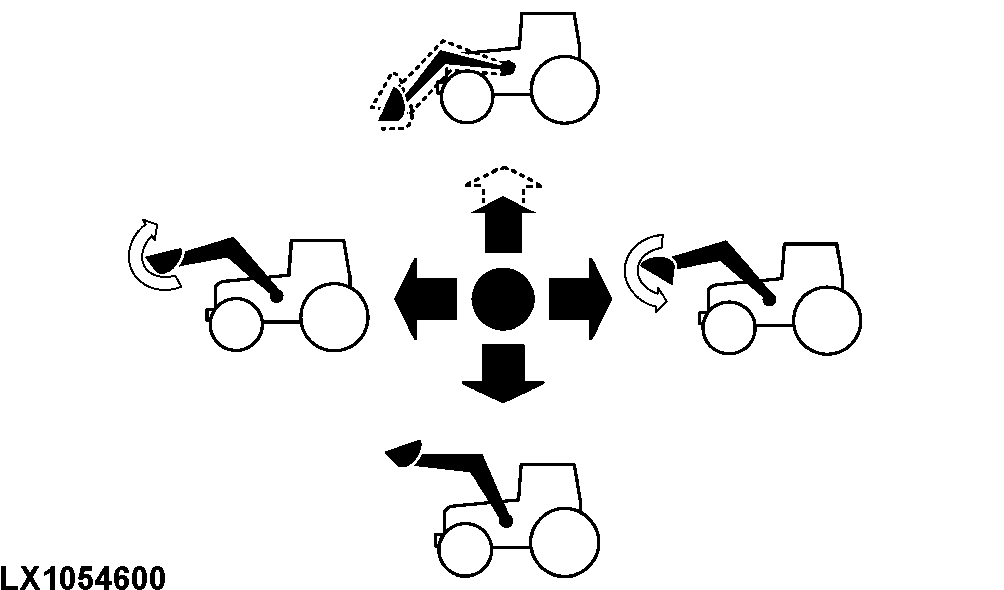

Pulling lever (A) back raises the front loader. Pushing the lever forward until resistance is reached lowers the front loader. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket tip up. Moving the lever to the right makes the loader bucket dump.

CAUTION: The multi-function lever must be locked when driving on roads and whenever the front loader is not required. Move the multi-function lever to neutral position and lock it using slide control (C). Make sure that the multi-function lever can no longer move. Otherwise, the front loader may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.
