Check Front Wheel Toe-In

LX1049286
LX1049286-UN-08JUN10

Tractor with Front-Wheel Drive

LX1049288
LX1049288-UN-08JUN10

Tractor with Front-Wheel Drive

  1. Make sure tires are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

    CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

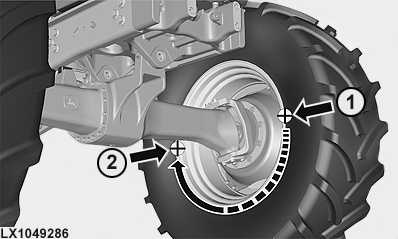

  2. First, put marks (+) at axle height on the front (1) of each of the two front wheels.

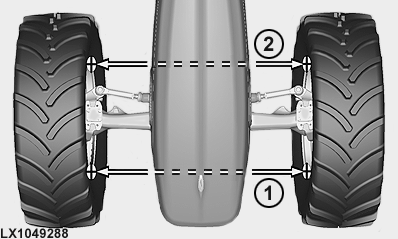

  3. At the front, measure distance (1) from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

  4. Roll the tractor forward by half the circumference of the front wheel, bringing the (+) mark to the rear (2).

  5. At the rear, measure distance (2) from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

Dimension (1) at the front must be 0 to 1.5 mm (0.12 to 0.06 in.) less than dimension (2) at the rear.
