Vehicle Controls

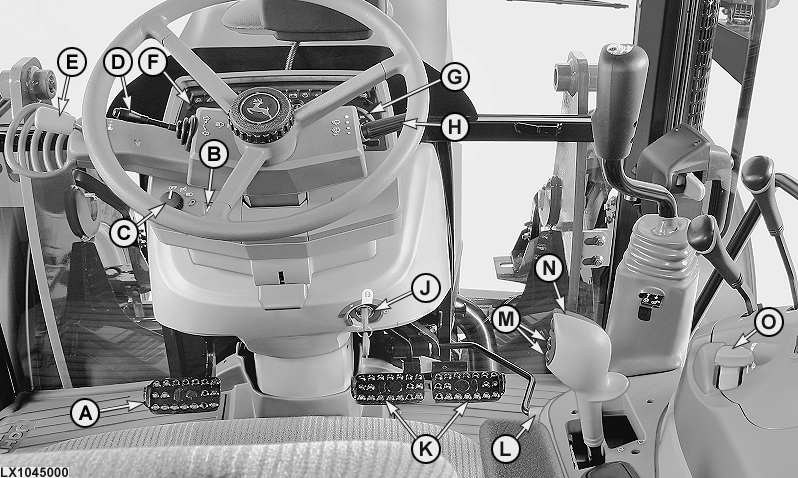

LX1045000-UN-05AUG08

A - Clutch Pedal

B - Hazard Warning Light Switch

C - Light Switch

D - Turn Signal Lever

E - Reverser Lever

F - Speedometer (km/h and mph)

G - Tachometer (engine rpm)

H - Windshield Wiper Switch

J - Main (Key) Switch

K - Brake Pedals

L - Accelerator Pedal

M - Gear Shift Switches

N - Range Shift Lever

O - Hand Throttle

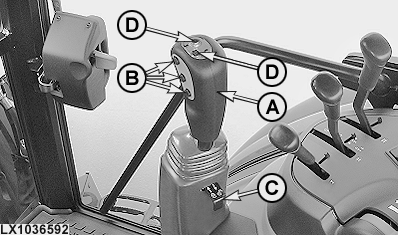

LX1036592-UN-28JUL05

Not available on all models

A - Multi-Function Lever

B - Buttons for Additional Functions

C - Transport Lock Slide Control

D - Gear Shift Switches
