Light Switch

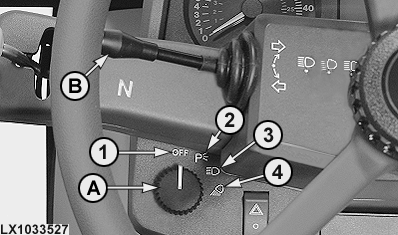

LX1033527-UN-19NOV03

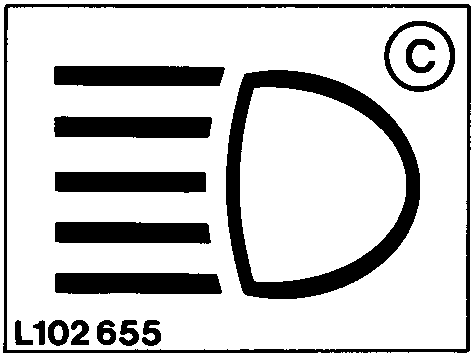

L102655-UN-15AUG94

Light switch (A) can be set to the following positions:

• 1 = Light switch in “off” position
• 2 = Parking lights “on”
• 3 = Headlights “on”
• 4 = Headlights “on” and worklights can be switched on

Switch headlights to “low beam” or “high beam” position by means of switch (B).

• Switch down = high beam
• Switch in center = low beam
• Switch up = headlight flasher (“flash-to-pass”)

Indicator light (C) will glow when headlight switch is in “high beam” position.
