Switches for Turn Signal Lights and Horn

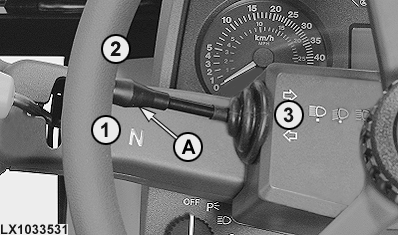

LX1033531-UN-20NOV03

Positions of turn signal lever (A):

• 1 = Turn signal, left-hand turn
• 2 = Turn signal, right-hand turn
• 3 = Horn (push towards steering column)

To switch off, move the turn signal lever to its mid position.
