Worklight Switches

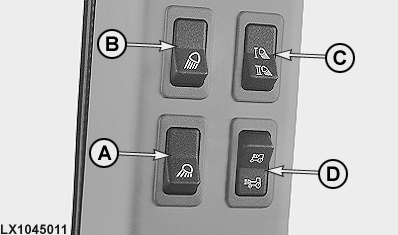

LX1045011-UN-05AUG08

A - Front corner worklights

B - Front roof worklights

C - Rear roof worklights

D - Location, cab frame worklights

The worklights can be switched on and off using the switches shown here. The main light switch must first be set to position 4.

NOTE: If the tractor is equipped with worklights on the cab frame, the relevant switch is located at position (D).
