Seven-Terminal Trailer Socket

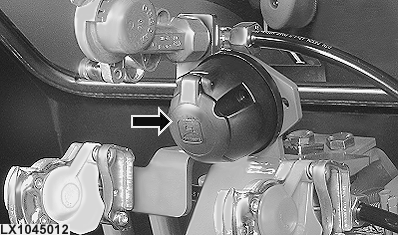

LX1045012-UN-05AUG08

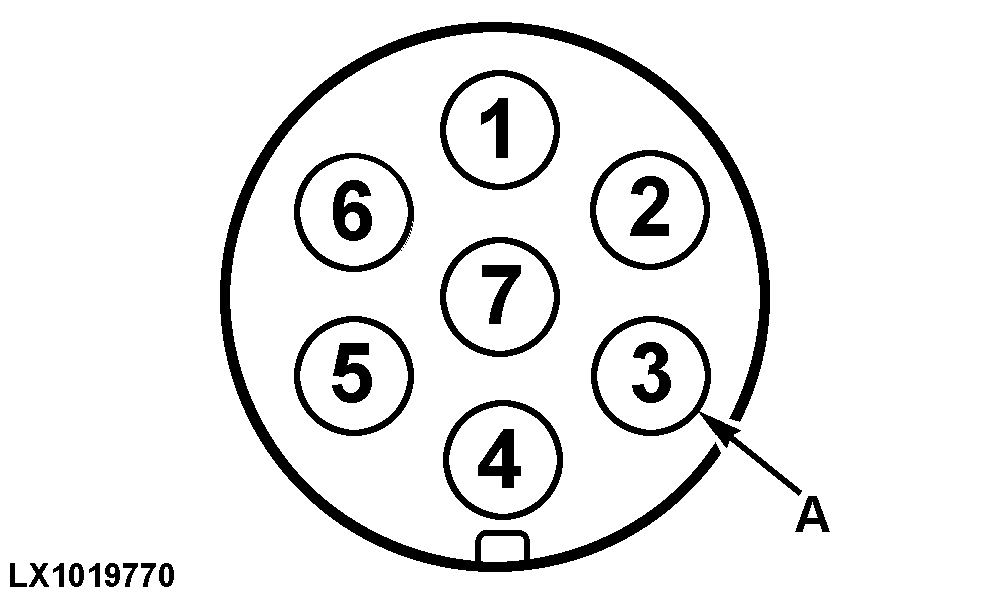

LX1019770-UN-17NOV00

The socket allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.

NOTE: Suitable plugs can be obtained from your John Deere dealer.

Terminal (A) is the ground connection.

Connection	Operation	Wire color
1	L.h. turn signal	Dark green
2	—	—
3	Ground	Black
4	R.h. turn signal	Pale purple
5	R.h tail light	Grey
6	Brake lights	Light blue
7	L.h tail light	Grey
