Wiper and Washer System

LX1045019-UN-05AUG08

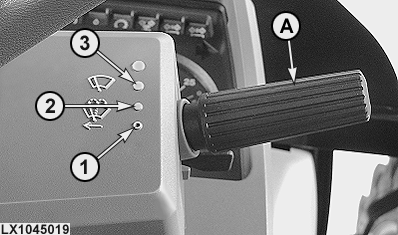

Windshield wiper switch (A) has three positions:

• 1 = off
• 2 = Intermittent wipe
• 3 = Fixed speed

The windshield washer system is operated by pushing switch (A) towards the steering wheel.

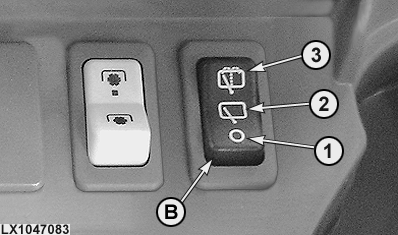

Rear window wiper (optional)

LX1047083-UN-05AUG08

Rear window wiper switch (B) has three positions:

• 1 = off
• 2 = Wiper on
• 3 = Washer on

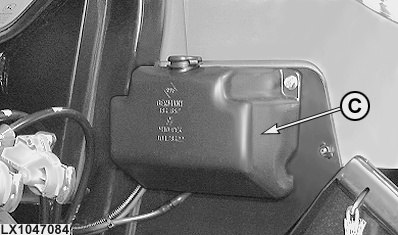

Reservoir for windshield washer system

LX1047084-UN-05AUG08

Add a suitable anti-freeze solution to water in reservoir (C) to prevent damage to the system if temperatures drop below freezing point.
