Coolant Heater

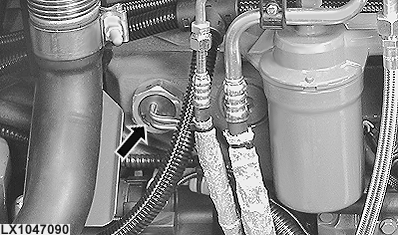

LX1047090-UN-05AUG08

Connect plug of coolant heater (arrow) to a 220-volt power source.

At an ambient temperature of -15°C (5°F), the heating process takes approx. 2 hours. Extend the heating period if the ambient temperature is lower.
