Engage the Reduction Gear

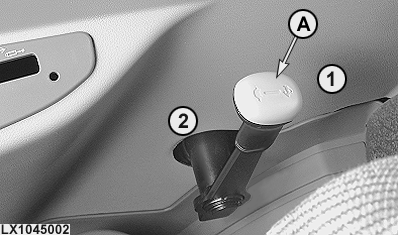

LX1045002-UN-05AUG08

A - Reduction gear lever

1 - Reduction gear disengaged

2 - Reduction gear engaged

IMPORTANT: Engage the reduction gear only when the tractor is stationary.

The reduction gear is engaged and disengaged at lever (A).
