Engage the Front-Wheel Drive

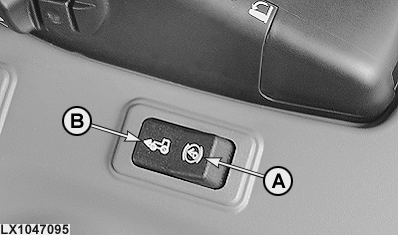

LX1047095-UN-13AUG08

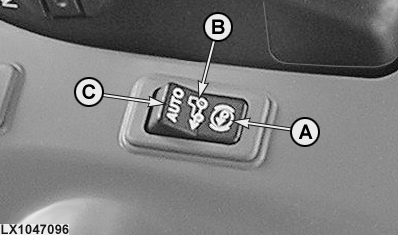

LX1047096-UN-13AUG08

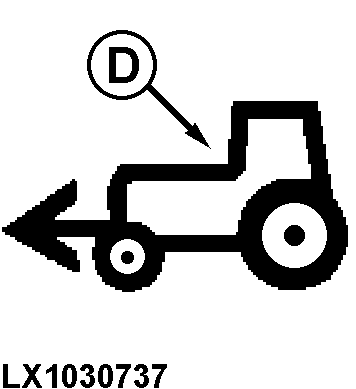

LX1030737-UN-14JAN03

A - Front-wheel drive disengaged

B - Front-wheel drive engaged

C - Automatic position

D - Indicator light comes on when front-wheel drive is engaged

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front-wheel drive before driving at high speed on public roads.

NOTE: When the brakes are applied, front-wheel drive engages automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light comes on.

With Headland Management System HMS (if equipped):

Besides the "on" and "off" functions, this system also has an automatic position. When "automatic" is selected, front-wheel drive disengages automatically whenever tractor speed exceeds 23 km/h (14.3 mph).

When tractor speed drops below 21 km/h (13 mph), front-wheel drive re-engages automatically.
