Shift the AutoQuad Plus Transmission

LX1047100-UN-13AUG08

LX1047101-UN-15SEP08

This transmission is shifted in the same way as the PowrQuad Plus (see above). However, it has two further functions: “Automatic gear shifting” and “Programmable highest gear in automatic gear shifting”.

Automatic gear shifting

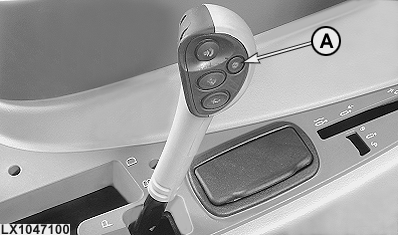

This automatic function is activated by pressing button (A) once.

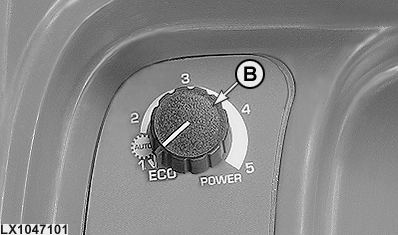

The gears in each range are shifted in relation to the position of the hand throttle or accelerator pedal as soon as engine speed reaches a maximum or minimum value. These values can be set using potentiometer (B).

The automatic function can be de-activated by pressing button (A) once again or by selecting a gear manually.

IMPORTANT: “Eco mode” is suitable ONLY for light work in the field and for driving on roads when the load being pulled is not heavy.

Eco mode: Hand throttle / accelerator pedal more than 85% towards top speed and engine revs over 1872 rpm: transmission shifts up.
Hand throttle / accelerator pedal more than 55% towards top speed and engine revs under 1300 rpm: transmission shifts down.
Hand throttle / accelerator pedal less than 55% towards top speed and engine revs under 1100 rpm: transmission shifts down.

Power mode: Hand throttle / accelerator pedal more than 85% towards top speed and engine revs over 2280 rpm: transmission shifts up.
Hand throttle / accelerator pedal more than 55% towards top speed and engine revs under 1720 rpm: transmission shifts down.
Hand throttle / accelerator pedal less than 55% towards top speed and engine revs under 1100 rpm: transmission shifts down.

Intermediate settings: The engine speeds at which the transmission shifts can be customized at potentiometer (B) to change the shift point to an intermediate level between the Eco mode and Power mode speeds.

Programmable highest gear in automatic gear shifting

LX1047100-UN-13AUG08

LX1033449-UN-26SEP03

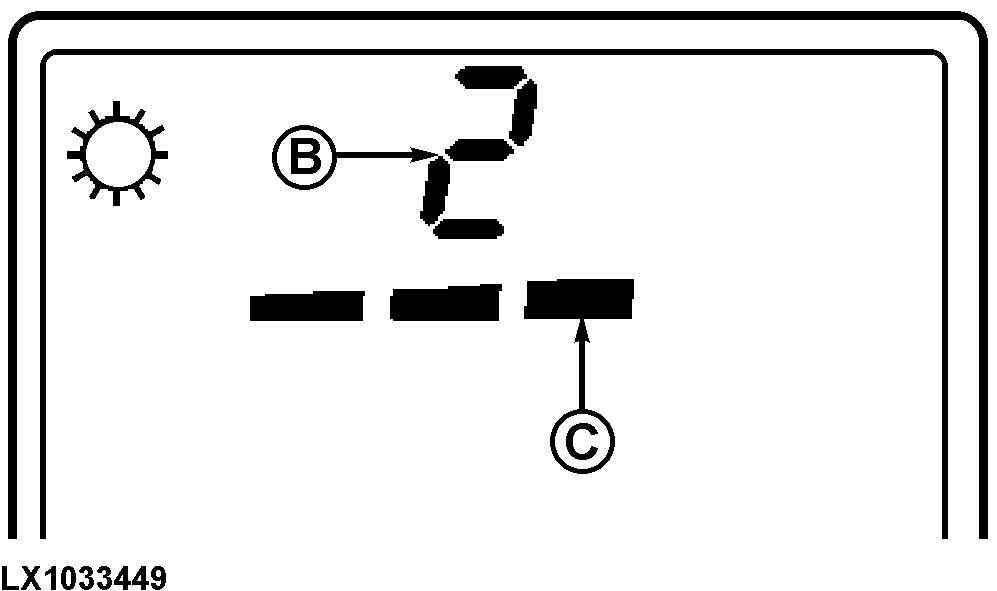

A - Automatic button

B - Current gear

C - Highest possible gear

NOTE: For programming, automatic gear shifting must be switched off.

In addition to activating the automatic gear-shift function, button (A) may be used to determine the highest possible gear. The following applies:

• Press once = the highest gear is 4th.
• Press twice (briefly) in succession = the highest gear is 3rd.
• Press three times (briefly) in succession = the highest gear is 2nd.

This setting is lost as soon as automatic gear shifting is switched off.

In the example opposite, the current gear (B) is 2nd, and the highest possible gear (C) is 3rd (there are three bars).
