Float Position

LX1030759-UN-16JAN03

LX1047109-UN-13AUG08

LX1026121-UN-10MAY01

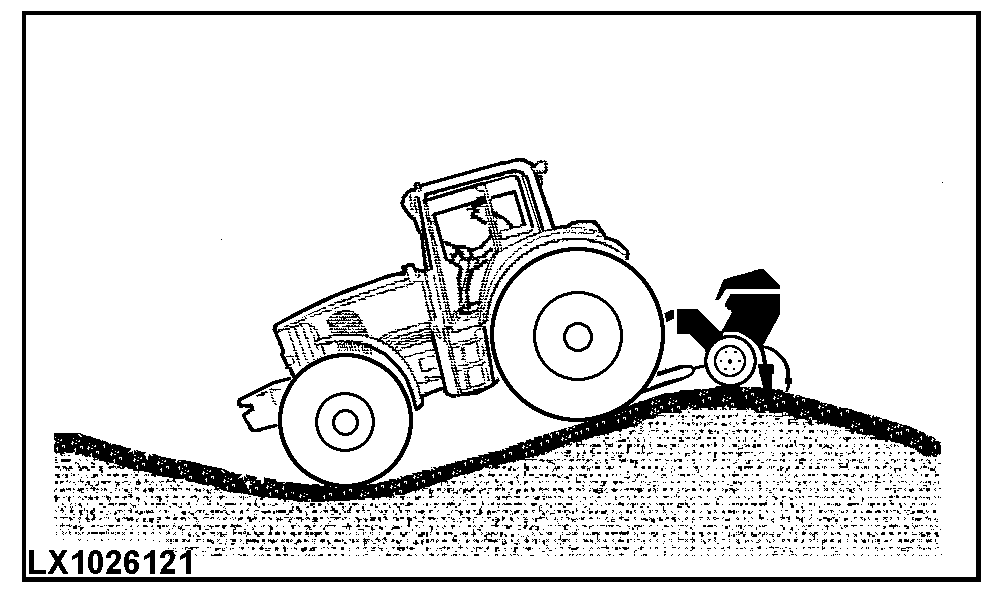

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain a "floating" action, set load/depth control (A) to 1 and move hitch control lever (B) as far as it will go to the front.
