Direct Actuation

LX1047110-UN-14AUG08

In the event of an electrical failure, the hitch can be actuated as follows:

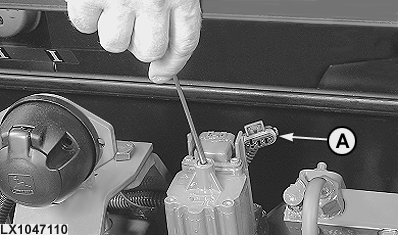

Pull out plug (A).

Take off the protective cap. Run the engine.

From the operator’s seat, turn the screw with a 3 mm (0.12 in.) hex. socket wrench until the three-point hitch is in the desired position.

See your John Deere dealer.
