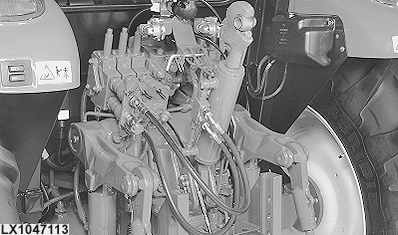

Hydraulic Center Link (Option)

LX1047113-UN-14AUG08

The length of the hydraulic center link can be adjusted from the driver's seat using one of the selective control valves.

With the hydraulic center link, before starting any journey or operating in the field the operator must be certain that the three-point hitch has sufficient clearance for all possible movements. The center link must not come into contact with other parts of the tractor at any point within its vertical and horizontal ranges.
