Operating PTOs

LX1047114-UN-19AUG08

LX1030782-UN-24JAN03

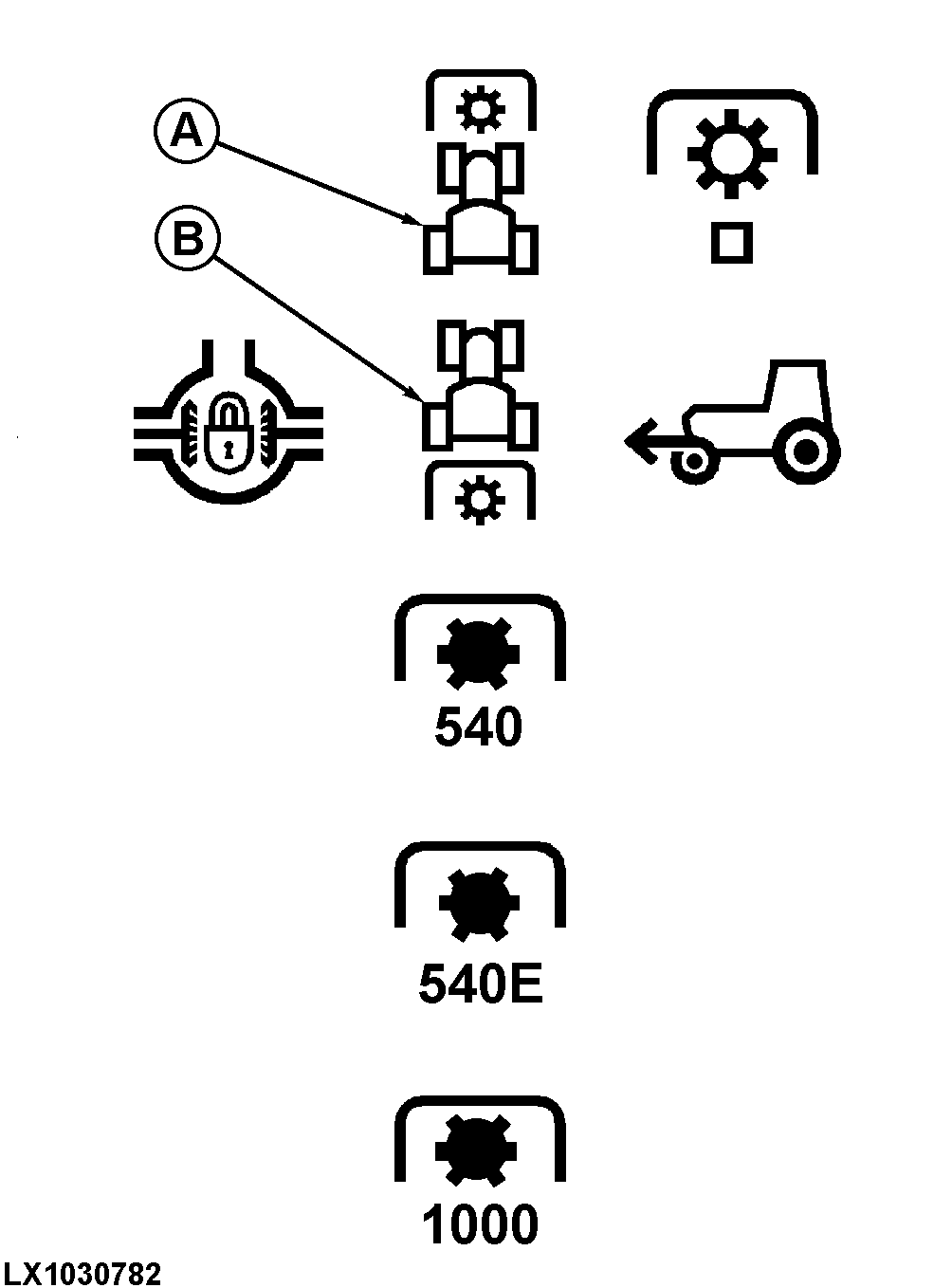

A - Front PTO Indicator Light

B - Rear PTO Indicator Light

CAUTION: Always disengage the PTO when not in use. Shut off engine before working on the PTO or implement.

CAUTION: High-inertia implements do not stop the moment the PTO control lever is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

The PTOs can be engaged and disengaged on-the-go and under load. When a PTO is engaged, the relevant light (A) and/or (B) comes on.

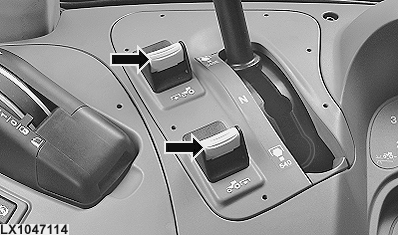

To switch on the PTO, press the lever down and then forward. To switch off the PTO, pull the lever to the rear.

NOTE: If the engine is shut off and then restarted while the PTO is running, the PTO will not operate. Even so, lights (A) and (B) remain on. Switch off PTO and then restart.
