Adjustable Drawbar

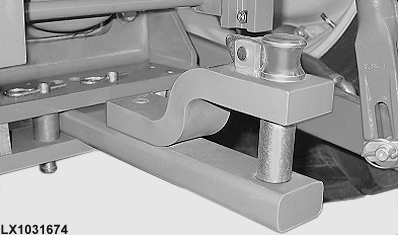

LX1031674
LX1031674-UN-19FEB03

The drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar hitch point is located so as to increase the rear axle load and at the same time slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible static vertical loads and towable loads are stated in the “Specifications” section.

NOTE: Drawbar components that are subject to wear have to be checked every 250 hours (see Service / Every 250 Hours). Replace them if necessary.

NOTE: Towing on public roads with the drawbar set to one side is not permitted!


Locking the hitch pins

CAUTION:

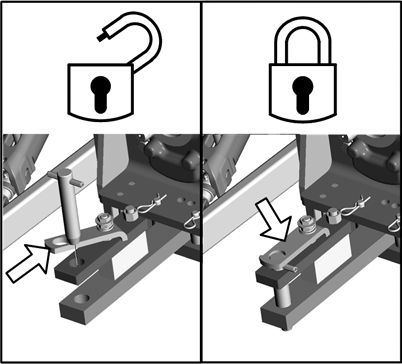

LX1054657
LX1054657-UN-03FEB12

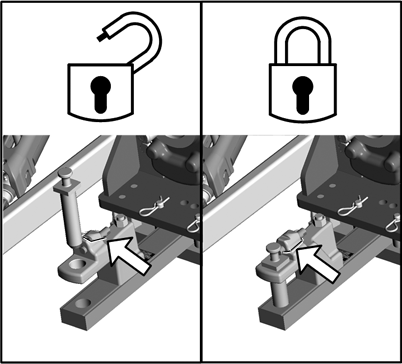

LX1054658
LX1054658-UN-03FEB12

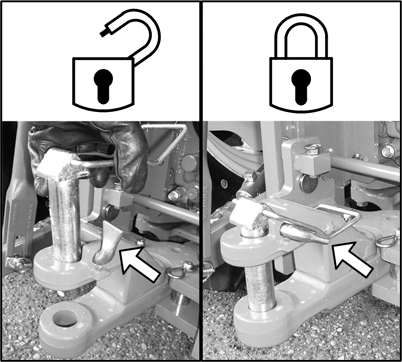

LX1054659
LX1054659-UN-03FEB12

Once the implement is attached, it is essential to make sure that hitch pins are locked. If the pin is not locked, it may be lost during the journey, which could cause a serious accident.

OU12401,0001A3C-19-20120203
