Check the Manually-Operated Hitch for Wear

LX1031437-UN-24SEP03

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

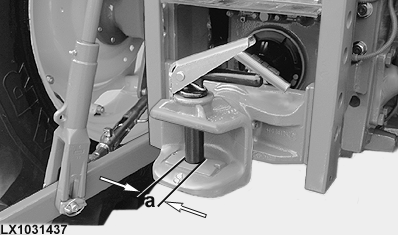

Check diameter (a) of the hitch pin.

Hitch pin — Wear limit or minimum diameter..............

29.0 mm (1.14 in.)

LX1031438-UN-24SEP03

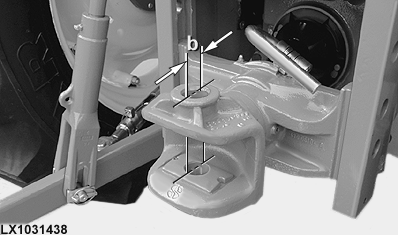

Receiver hole, top and bottom (in direction of travel) — Wear limit or maximum permissible diameter (oval)..............

35.0 mm (1.38 in.)

LX1031439-UN-29SEP03

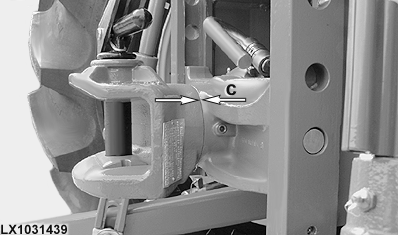

Max. permissible play between hitch and receiver — Play..............

3.0 mm (0.12 in.)
