Check the Manually-Operated Hitch for Wear (Italy and Spain Only)

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

LX1031440-UN-23SEP03

LX1031441-UN-23SEP03

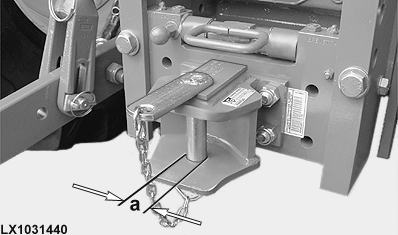

Check diameter (a) of the hitch pin.

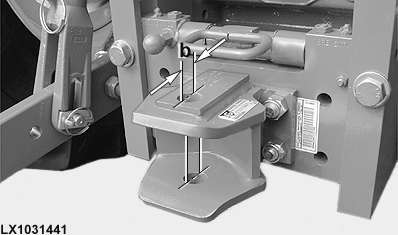

Check diameter (b) of the receiver hole.

Specifications for hitch pins with a nominal diameter of 28.0 mm (1.10 in.)
Hitch pin — Wear limit or minimum diameter..............	26.5 mm (1.04 in.)
Receiver hole, top and bottom (in direction of travel) — Wear limit or maximum permissible diameter (oval)..............	31.0 mm (1.22 in.)

Specifications for hitch pins with a nominal diameter of 43.0 mm (1.69 in.)
Hitch pin — Wear limit or minimum diameter..............	41.0 mm (1.61 in.)
Receiver hole, top and bottom (in direction of travel) — Wear limit or maximum permissible diameter (oval)..............	46.0 mm (1.81 in.)
