Check Remote Controlled Hitch for Wear

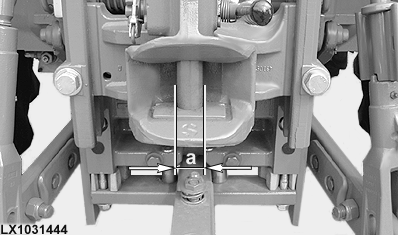

LX1031444-UN-23SEP03

Straight-sided hitch pin

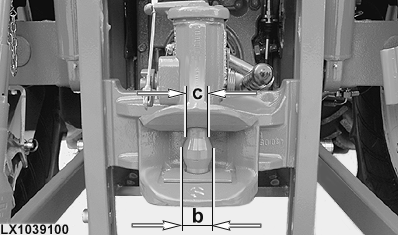

LX1039100-UN-11JUL06

Ball-shaped hitch pin

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

Check diameters (a, b and c) of the hitch pin.

Straight-sided hitch pin — Wear limit or minimum diameter (a)..............	29.0 mm (1.14 in.)
Ball-shaped hitch pin — Wear limit or minimum diameter (b)..............	36 mm (1.42 in.)
Ball-shaped hitch pin — Wear limit or minimum diameter (c)..............	27 mm (1.06 in.)

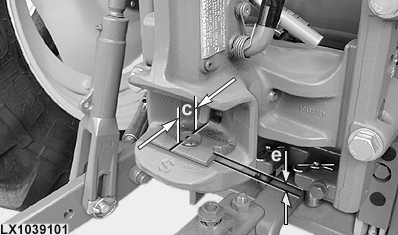

LX1039101-UN-11JUL06

Check diameter (c) of the receiver hole.

Receiver hole, bottom (in direction of travel) — Wear limit or maximum permissible diameter (c — oval)..............

34.0 mm (1.33 in.)

Check thickness (e) of wear plate.

Wear plate — Wear limit or minimum permitted thickness (e)..............

6.0 mm (0.24 in.)

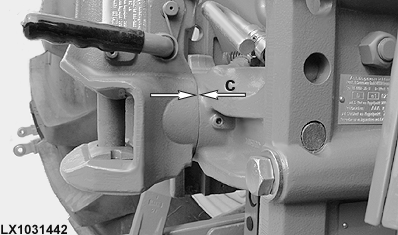

LX1031442-UN-29SEP03

Max. permissible play between hitch and receiver — Play..............

3.0 mm (0.12 in.)
