Check the Drawbar for Wear

LX1036298-UN-03JUN05

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

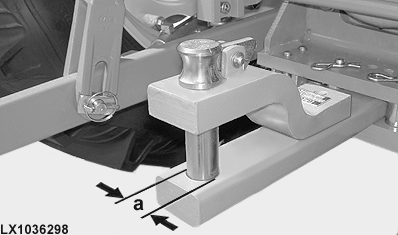

Check diameter (a) of the pin.

Pin of drawbar — Wear limit or minimum diameter..............

29.5 mm (1.16 in.)

LX1036299-UN-03JUN05

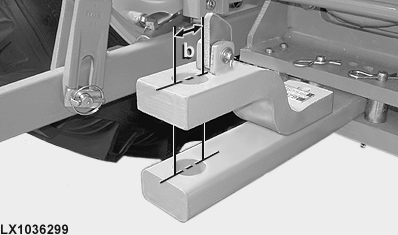

Receiver hole, top and bottom (in direction of travel) — Wear limit or maximum permissible diameter (oval)..............

35.0 mm (1.38 in.)
