Check Tow-Hook on Pick-Up Hitch for Wear

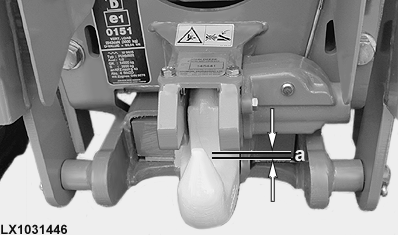

LX1031446-UN-24SEP03

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

Check gap (a) at catch.

Gap at catch — Maximum permissible clearance..............

10.0 mm (0.39 in.)

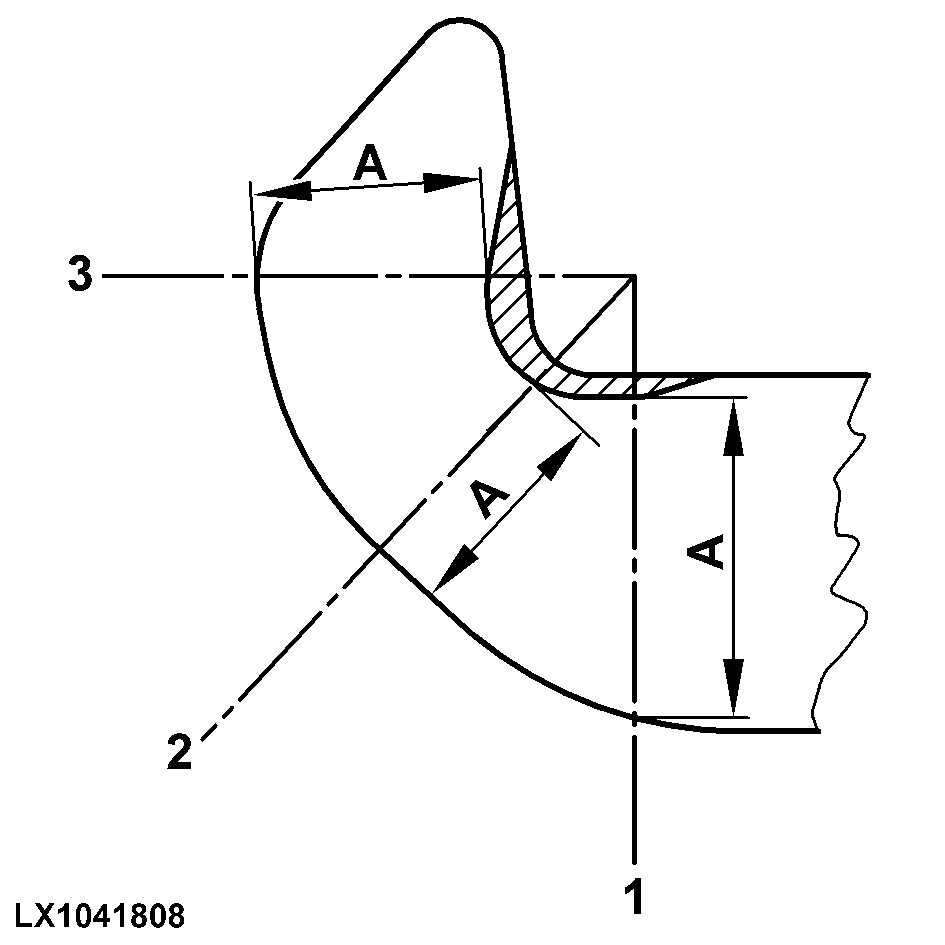

LX1041808-UN-27NOV06

If the “D”-value indicated on the type plate is 65 or less, observe the following wear tolerances (A).

Tow hook, diameter (D = 65 or less) — Minimum value (A), Level 1..............	43.5 mm (1.71 in.)
Minimum value (A), diameter 2..............	42.0 mm (1.65 in.)
Minimum value (A), diameter 3..............	40.5 mm (1.59 in.)

If the “D”-value indicated on the type plate exceeds 65, observe the following wear tolerances (A).

Item	Measurement	Specification
Tow hook, diameter (D = more than 65)	Minimum value (A), diameter 1	45.0 mm 1.77 in.

Tow hook, diameter (D greater than 65) — Minimum value (A), Level 1..............	45.0 mm (1.77 in.)
Minimum value (A), diameter 2..............	43.5 mm (1.71 in.)
Minimum value (A), diameter 3..............	42.0 mm (1.65 in.)
