Engine Air Cleaner

LX1047131-UN-26AUG08

LX1047132-UN-26AUG08

If the air cleaner indicator lamp glows during operation, remove and clean the primary filter element.

The service interval may be extended briefly, e.g. until the next suitable opportunity. Provided the cleaner is serviced properly, this will not adversely affect its performance.

The primary element can be cleaned up to five times. Thereafter, or at the latest after 1500 hours of operation (or 2 years), it must be replaced.

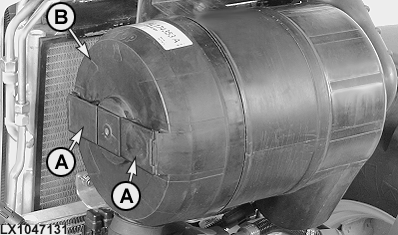

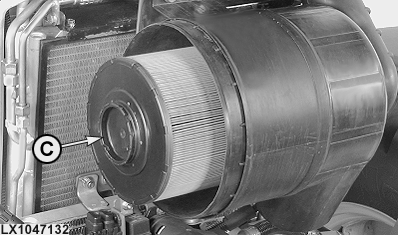

Open the hood, then release catches (A). Remove the cover (B). Unscrew the primary filter element (C) from the cleaner housing.

IMPORTANT: Never run the engine without the primary air cleaner element!
