Keep Radiator Screen Clean

LX1049786
LX1049786-UN-30JUL10

LX1049787
LX1049787-UN-30JUL10

LX1049788
LX1049788-UN-30JUL10

For efficient cooling, the radiator screen must be kept clean.

  1. Shut off engine and lift hood.

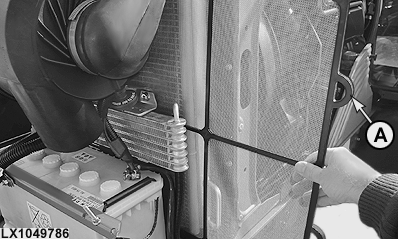

  2. Remove and clean radiator screen (A).

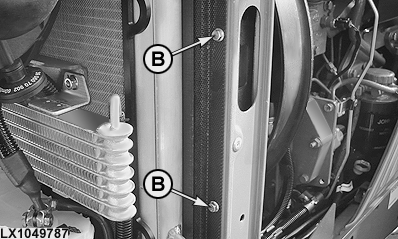

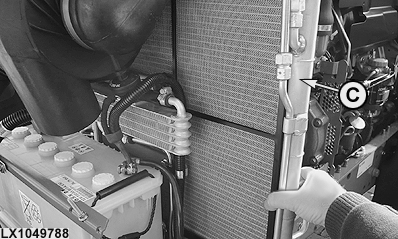

  3. Remove the two screws (B), lift off the slat and pull out condenser1 (C). Clean the condenser and radiator.

IMPORTANT: Use of high-pressure washers or compressed air may cause the radiator fins to bend. Do not go too close. Carefully straighten any radiator fins that become bent.

1 Tractors with air-conditioning system only.
