Fuses and Relays in the Engine Compartment

LX1045180-UN-20JUN08

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

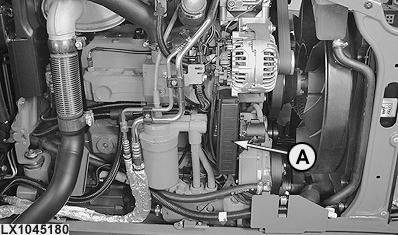

The fuse and relay box is located on the r.h. side of the engine.

Open the hood.

Take cover (A) off the fuse and relay box.
