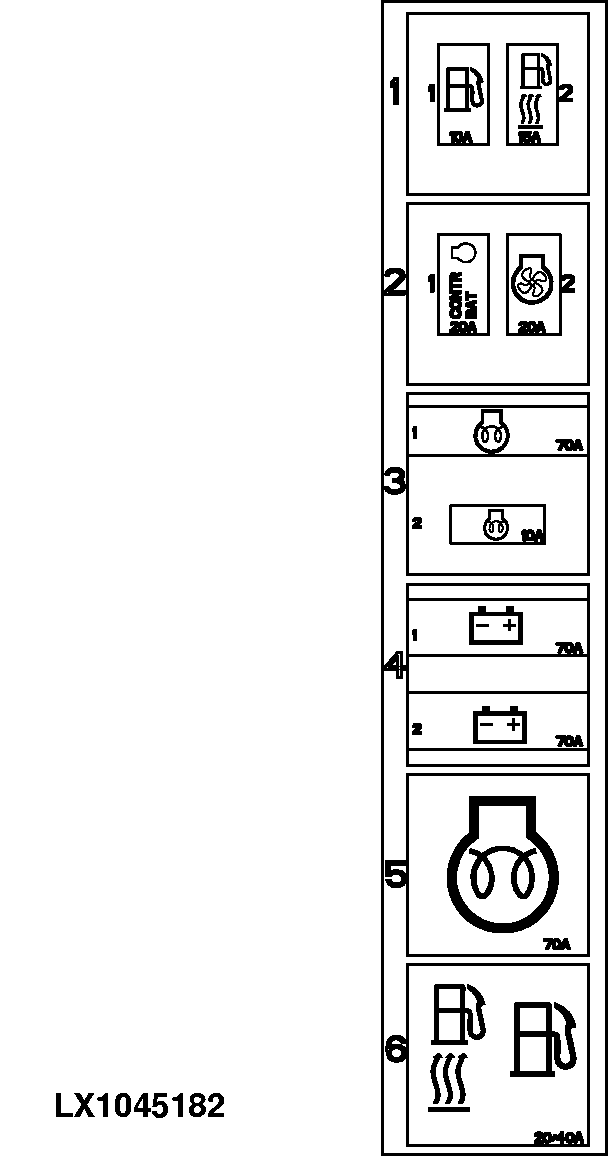

Fuses F01PLB to F04PLB and Relays K05PLB to K06PLB (Engine Compartment)

LX1045182-UN-03JUL08

Number	Capacity (amps)	Consumer
F01PLB/01	10 amps	Fuel transfer pump
F01PLB/02	15 amps	Fuel preheater
F02PLB/01	20 amps	Control unit ECU
F02PLB/02	20 amps	Intercooler fan
F03PLB/01	70 amps	Heating element of electrical starting aid
F03PLB/02	10 amps	Monitoring of electrical starting aid
F04PLB/01	70 amps	Main fuse
F04PLB/02	70 amps	Main fuse
K05PLB	70 amps	Relay for electrical starting aid
K06PLB	20/40 amps	Relay for fuel transfer pump and fuel preheater
