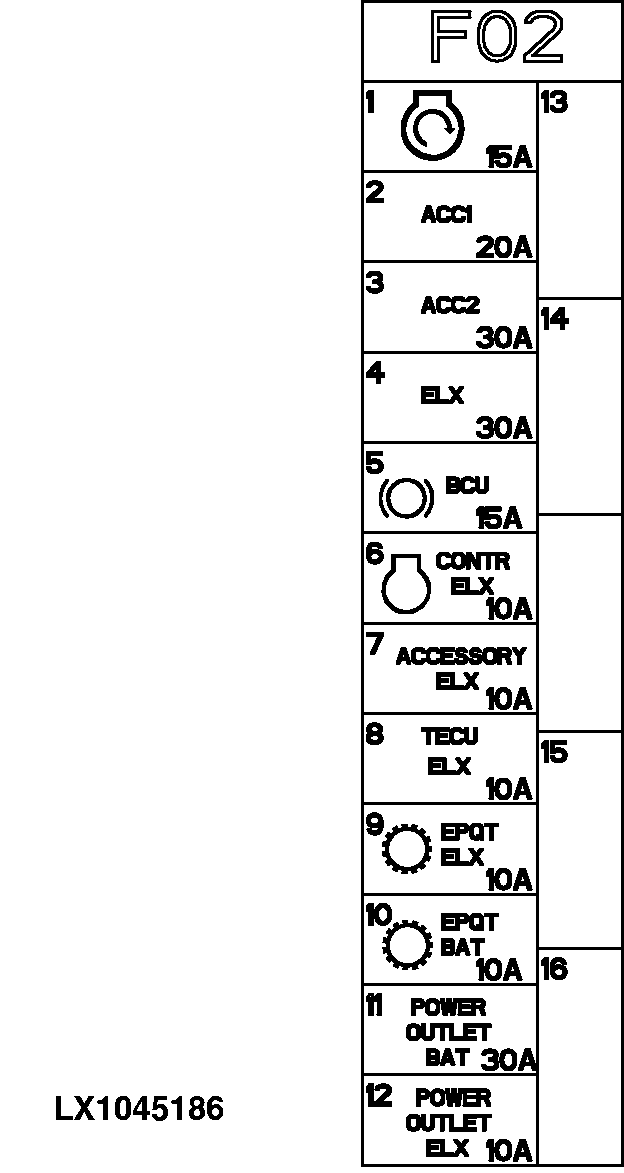

Fuses F02 (Cab)
LX1045186-UN-03JUL08
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02/01 |
15 amps |
Main (key) switch |
|
F02/02 |
20 amps |
Power supply to accessories |
|
F02/03 |
30 amps |
Power supply to accessories |
|
F02/04 |
30 amps |
Power supply for electronics |
|
F02/05 |
15 amps |
Brake switches |
|
F02/06 |
10 amps |
Control unit ECU |
|
F02/07 |
10 amps |
Plug for accessories |
|
F02/08 |
- |
Not used |
|
F02/09 |
10 amps |
Control unit EPC |
|
F02/10 |
10 amps |
Control unit EPC |
|
F02/11 |
30 amps |
3-terminal socket, power outlet strip |
|
F02/12 |
10 amps |
3-terminal socket, power outlet strip |
|
F02/13 |
- |
Not used |
|
F02/14 |
- |
Not used |
|
F02/15 |
- |
Not used |
|
F02/16 |
- |
Not used |
|
OU12401,0001A6D-19-20080826 |
