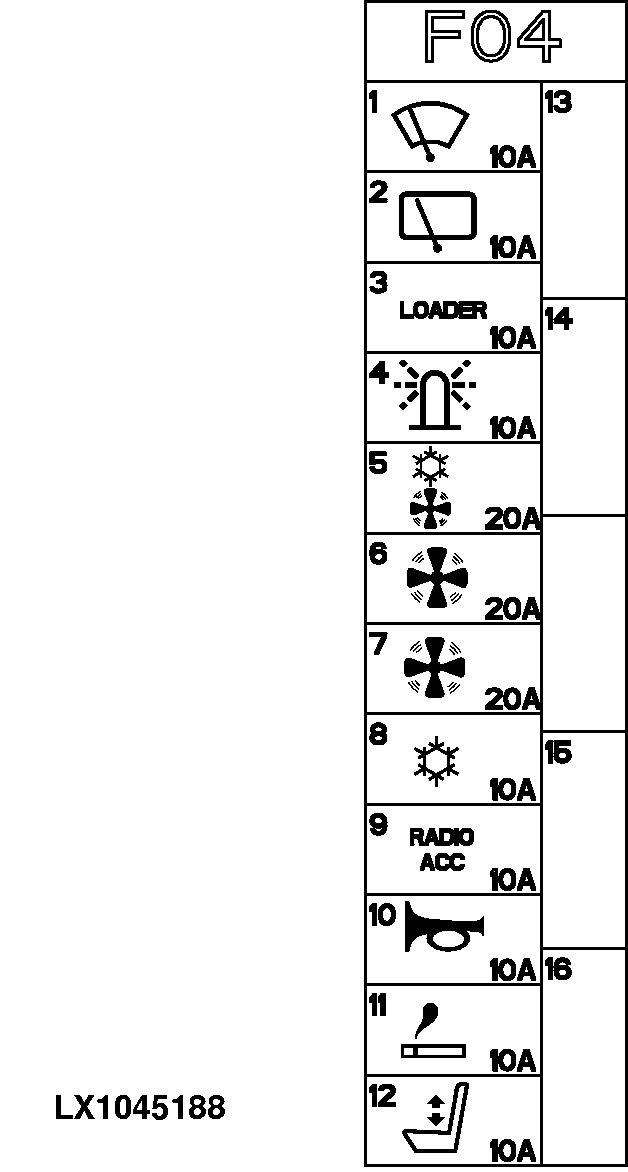

Fuses F04 (Cab)
LX1045188-UN-03JUL08
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F04/01 |
10 amps |
Windshield wiper and washer |
|
F04/02 |
10 amps |
Rear window wiper and washer |
|
F04/03 |
10 amps |
Plug for front loader |
|
F04/04 |
10 amps |
Beacon light |
|
F04/05 |
20 amps |
Fan switch, fan relay |
|
F04/06 |
20 amps |
Fan motor |
|
F04/07 |
20 amps |
Fan motor |
|
F04/08 |
10 amps |
Air-conditioning compressor |
|
F04/09 |
10 amps |
Radio |
|
F04/10 |
10 amps |
Horn |
|
F04/11 |
10 amps |
Cigarette lighter, signal socket |
|
F04/12 |
10 amps |
Operator's seat |
|
F04/13 |
- |
Not used |
|
F04/14 |
- |
Not used |
|
F04/15 |
- |
Not used |
|
F04/16 |
- |
Not used |
|
OU12401,0001A6F-19-20080826 |
