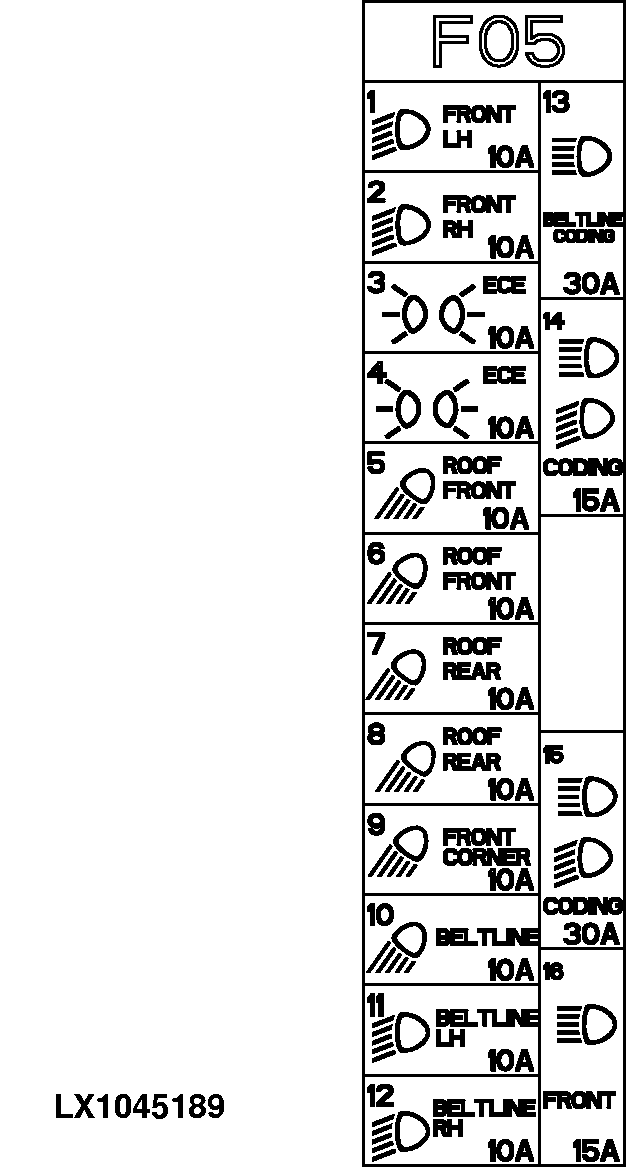

Fuses F05 (Cab)
LX1045189-UN-03JUL08
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F05/01 |
10 amps |
Low-beam headlight (left) |
|
F05/02 |
10 amps |
Low-beam headlight (right) |
|
F05/03 |
10 amps |
Right-hand tail light, left-hand clearance light |
|
F05/04 |
10 amps |
Left tail light, right clearance light, license plate light |
|
F05/05 |
10 amps |
Outer worklights on front of cab roof |
|
F05/06 |
10 amps |
Inner worklights on front of cab roof |
|
F05/07 |
10 amps |
Outer worklights on rear of cab roof |
|
F05/08 |
10 amps |
Inner worklights on rear of cab roof |
|
F05/09 |
10 amps |
Front corner worklights |
|
F05/10 |
10 amps |
Worklights on cab frame |
|
F05/11 |
10 amps |
Low-beam headlight, left (lights on cab frame) |
|
F05/12 |
10 amps |
Low-beam headlight, right (lights on cab frame) |
|
F05/13 |
30 amps |
Headlights |
|
F05/14 |
15 amps |
High-beam headlights |
|
F05/15 |
30 amps |
Lights on cab frame |
|
F05/16 |
15 amps |
High-beam (headlights and lights on cab frame) |
|
OU12401,0001A70-19-20080826 |
